Some accessories are in used condition. See details below.
This is a Raspberry Pi Model B low-power, small-form-factor computer. This fanless computer has no moving parts and is perfect for embedded projects and applications where low power consumption and no acoustic noise is ideal. Its digital and analog GPIO pins give you an interface to sensors, motors, LEDs, and other circuits in the outside world.
Project ideas:
This computer runs on the ARM CPU architecture. That means it WON'T run Microsoft Windows and is intended for advanced commercial, industrial, and educational users and hobbyists who are ready to roll up their sleeves and get their hands dirty! This kit comes with 2GB of flash storage, a network cable, video cables, and a power supply. Insert the flash card, plug in the cables, and it's ready to boot. All you'll need is a USB keyboard and a display (a TV or computer monitor with either an HDMI or a DVI connection).
Own the coveted geek toy of 2012! If you order this unit from the usual distribution channels, expect long delays as the official distributors get their production up and rolling (this one took 3 months). This RasPi is in my possession NOW, sealed in its original box. (The accessories are also mostly new; see below.) I originally ordered two RasPis, one from each distributor, because I wanted to use them for my own projects. But as I saw there was a demand created by those who want a RasPi even more than I do, I'm willing to wait until September for the next batch and supplement my income a tad by reselling this one with a bunch of accessories.
Learn more about the Raspberry Pi at the Raspberry Pi Foundation.

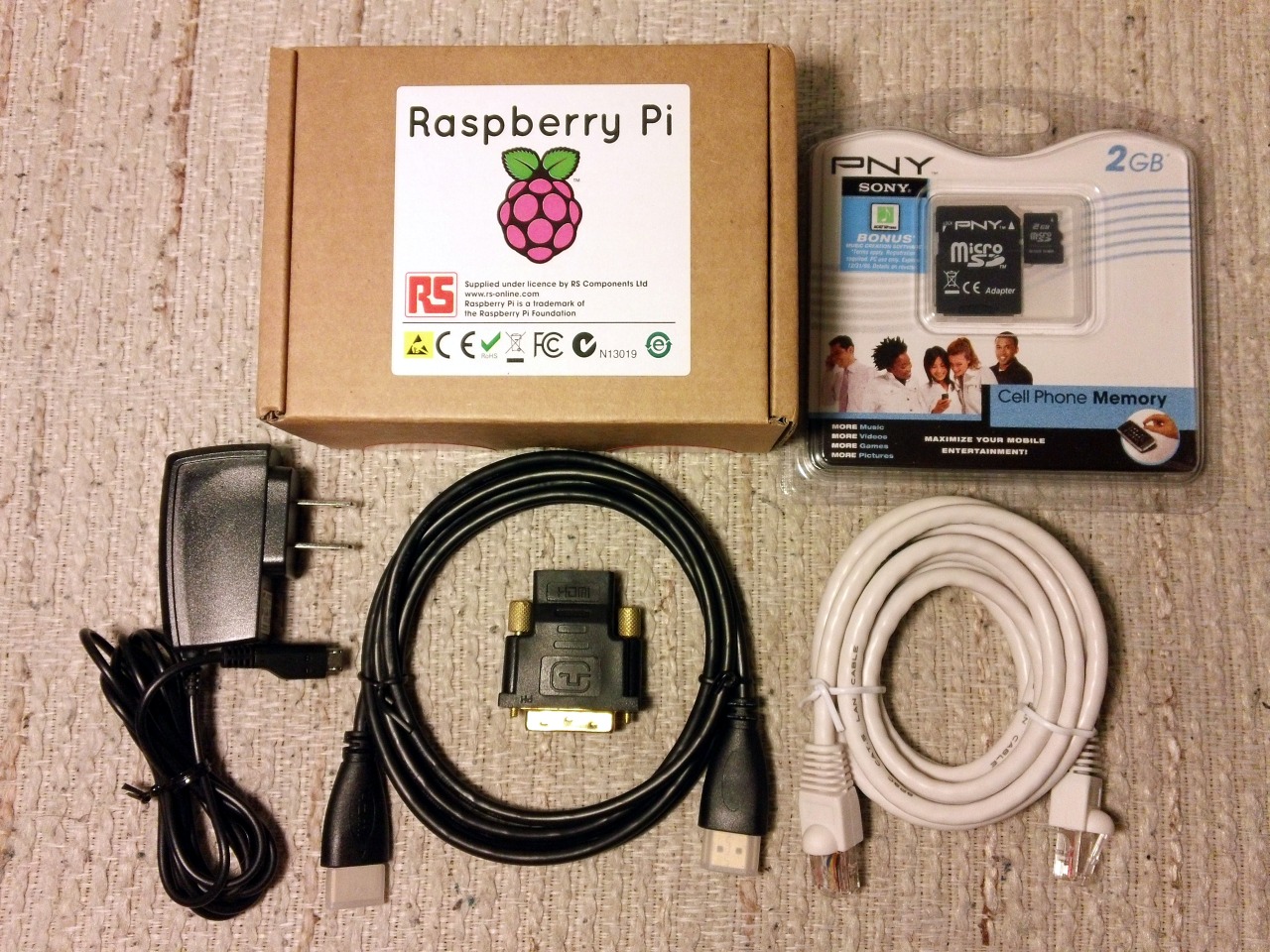

All photos are of the actual items you will receive. Click to enlarge.

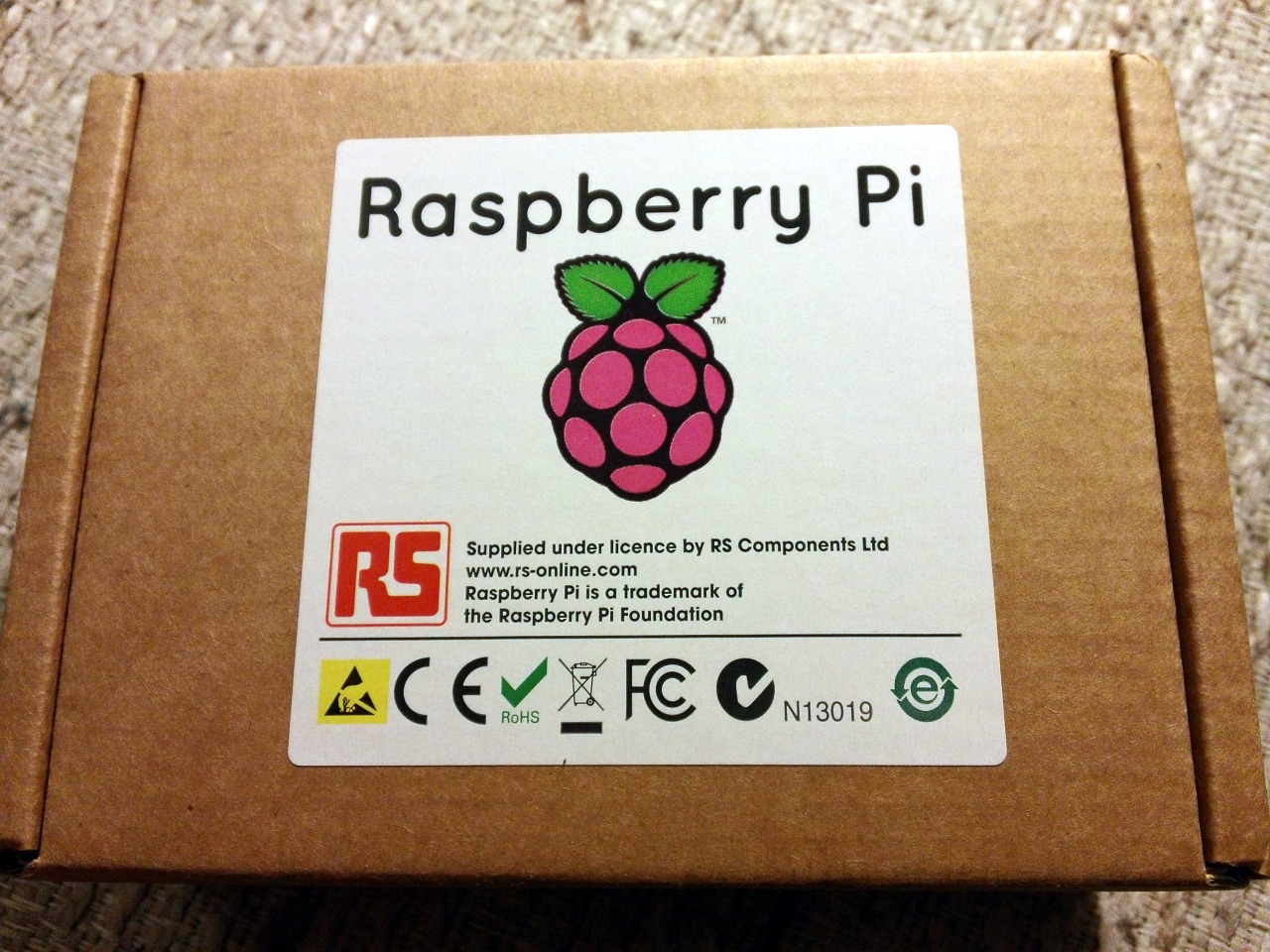

| Computer: | ||
|---|---|---|
| Brand: | Raspberry Pi |
|
| Model number: | B | |
| CPU: | 700MHz ARM1176JZF-S (ARM11 family) | |
| GPU: | Broadcom VideoCore IV, OpenGL ES 2.0, 1080p30 h.264/MPEG-4 AVC high-profile decoder | |
| RAM: | 256 MiB (shared with GPU) | |
| USB 2.0: | 2 ports | |
| Video out: | Composite RCA, HDMI, or raw connection to LCD panel with DSI (HDMI and DVI-D video cabling is included with this package, see below!) | |
| Audio out: | 3.5mm jack, HDMI | |
| Internal storage: | none | |
| External storage: | SD card slot, USB ports (Storage is included with this package, see below!) | |
| Networking: | 10/100 Ethernet (Cable is included with this package, see below!) | |
| Power requirements: | 5V 700mA (3.5W) (Power supply is included with this package, see below!) | |
| Power jack: | MicroUSB female, GPIO header | |
| Low-level peripherals: | 8 × GPIO, TTL-level RS-232-style UART, I²C bus, SPI bus with two chip selects, +3.3 V, +5 V, ground | |
| Size: | 85.60 × 53.98 mm (3.370 × 2.125 in) | |
| Weight: | 45g (1.6oz) | |

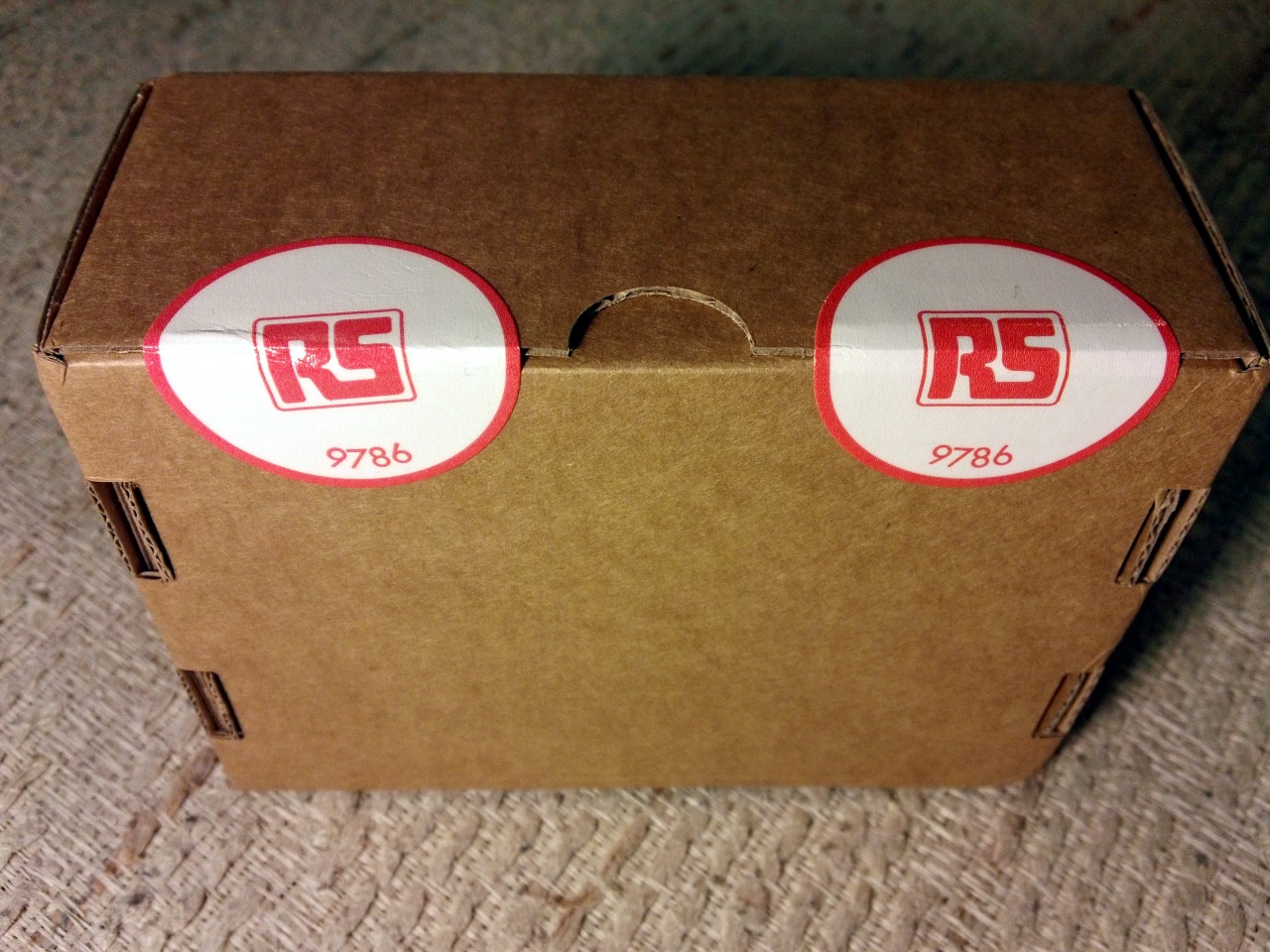

| Condition: | New, in sealed box | |

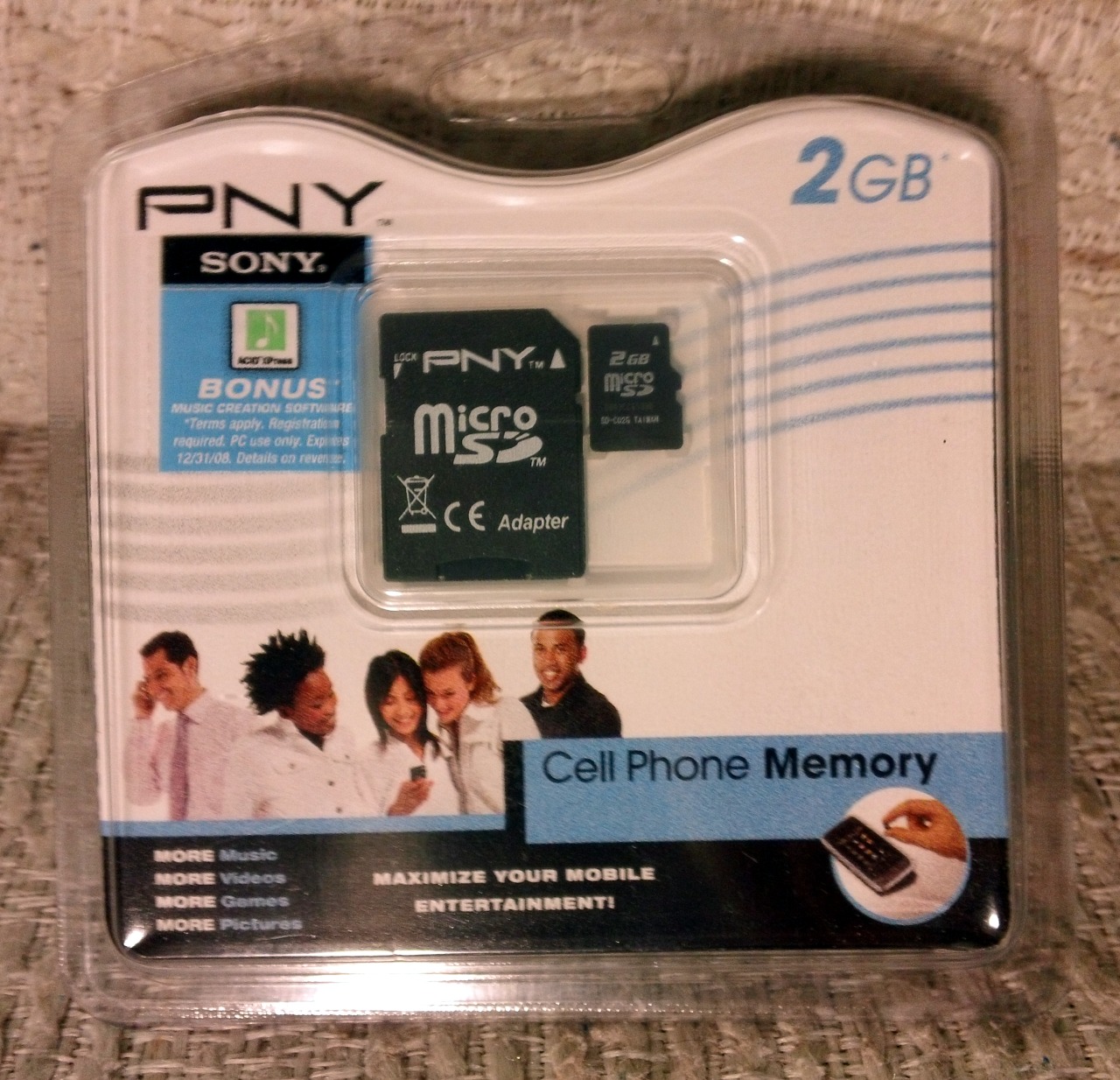

| Storage: | ||
| Brand: | PNY |
|
| Format: | microSD (with adapter for SD card slot) | |
| Capacity: | 1.97GB = 1,973,420,032 bytes = 3,854,336 sectors | |
| Condition: | Gently used for testing | |
| Testing performed: | 50 cycles random data write/read, no corruption detected | |
This card is loaded with Debian GNU/Linux and ready to boot your RasPi. (OS image debian6-19-04-2012.zip, dated 2012-04-19, SHA1 1852df83a11ee7083ca0e5f3fb41f93ecc59b1c8) Also comes with the original retail packaging (which has been opened). | ||

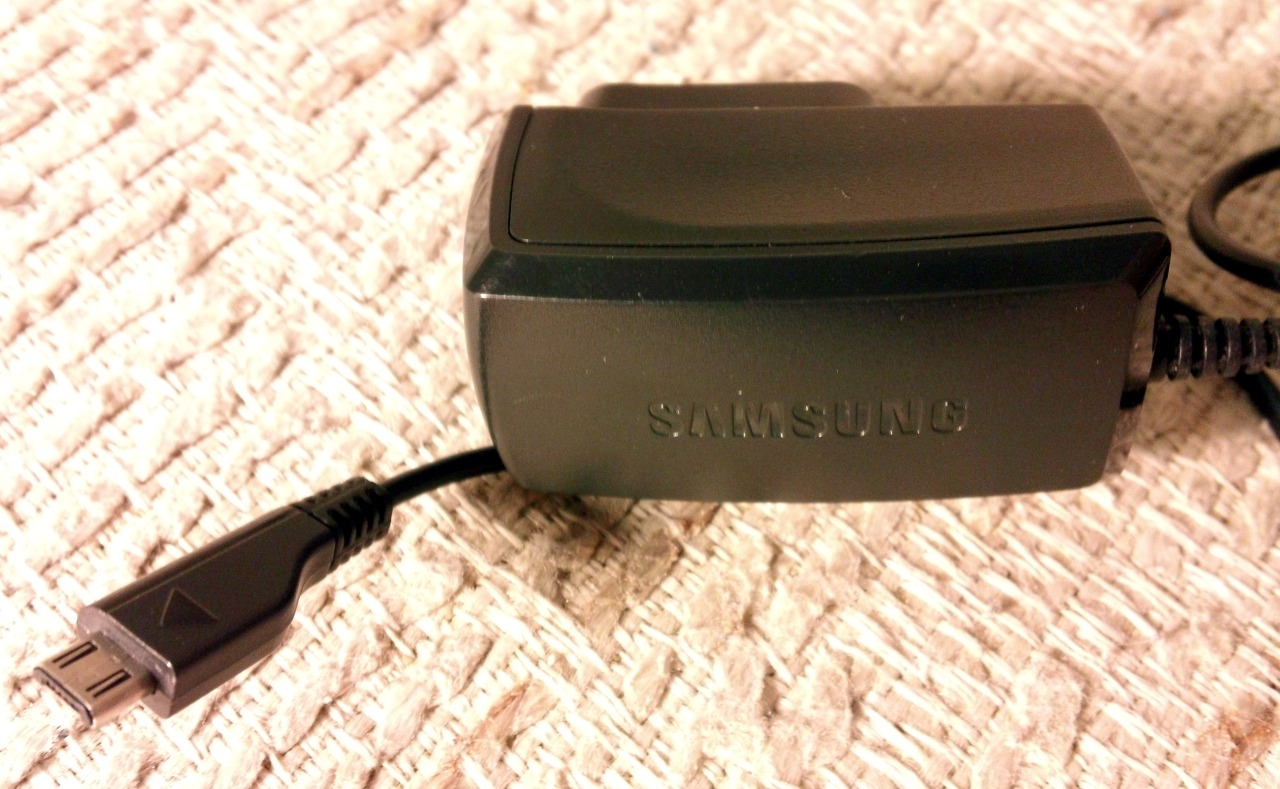

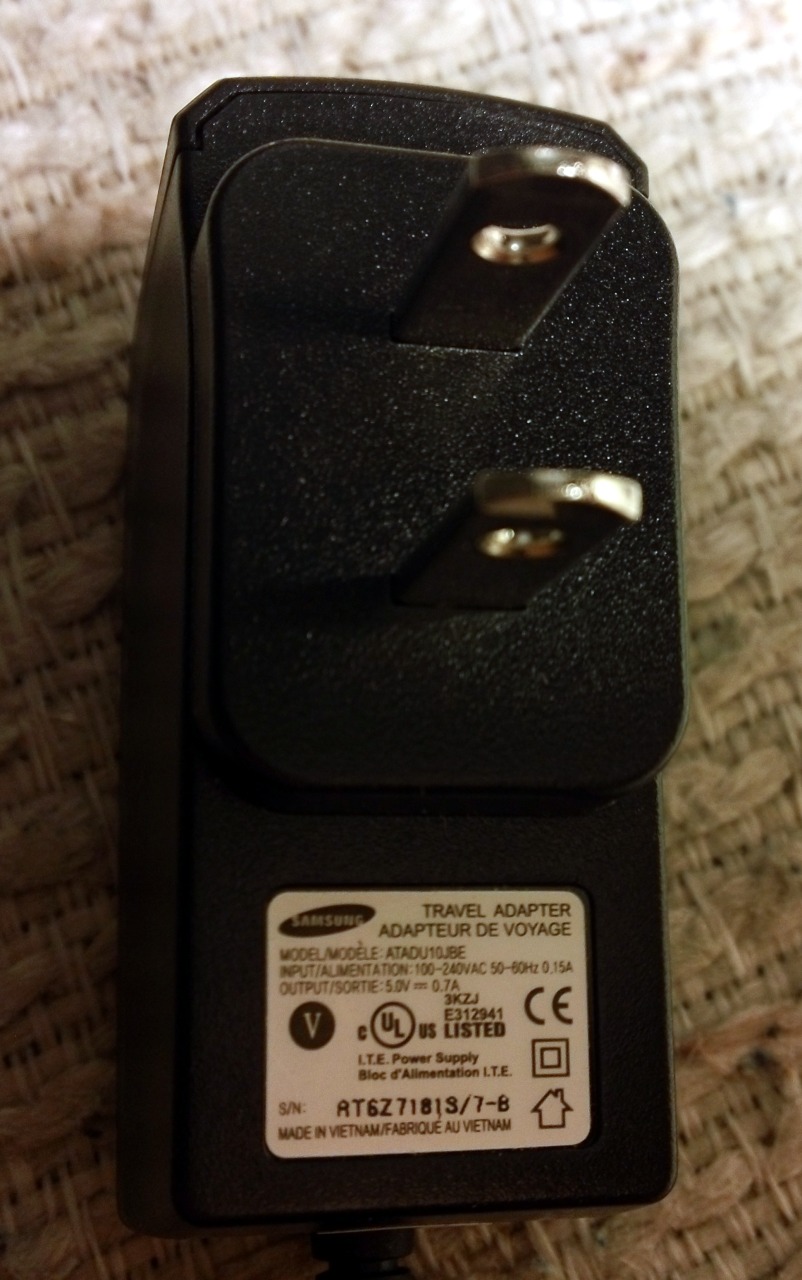

| Power supply: | ||
| Brand: | Samsung |
|
| Model number: | ATADU10JBE | |
| Input connector: | NEMA 1-15P plug (standard US power plug) | |
| Input rating: | 100–240 VAC, 50–60Hz, 0.15A | |
| Output connector: | MicroUSB male | |
| Output rating: | 5V 700mA (3.5W) (Rating meets the power requirements of this Raspberry Pi.) | |
| International Efficiency Marking Protocol: | Level V (most efficient level defined) | |
| Length: | 5ft (1.5m) | |
| Condition: | Used | |

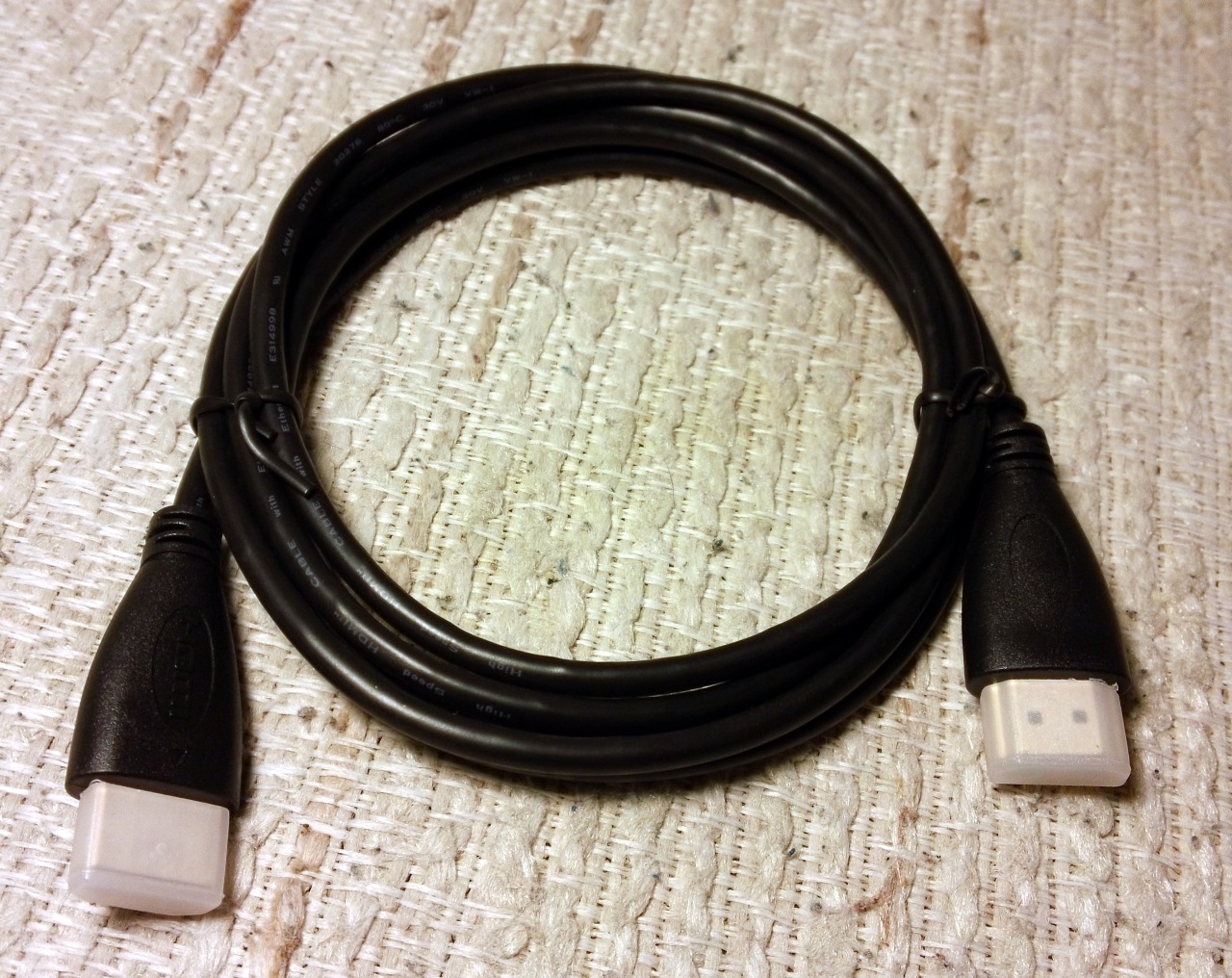

| Video cable: | ||
| Connector 1: | HDMI male |
|
| Connector 2: | HDMI male | |
| Length: | 6ft (1.8m) | |
| Condition: | New | |
| Use to connect the Raspberry Pi to your HDMI-compatible television or monitor. | ||

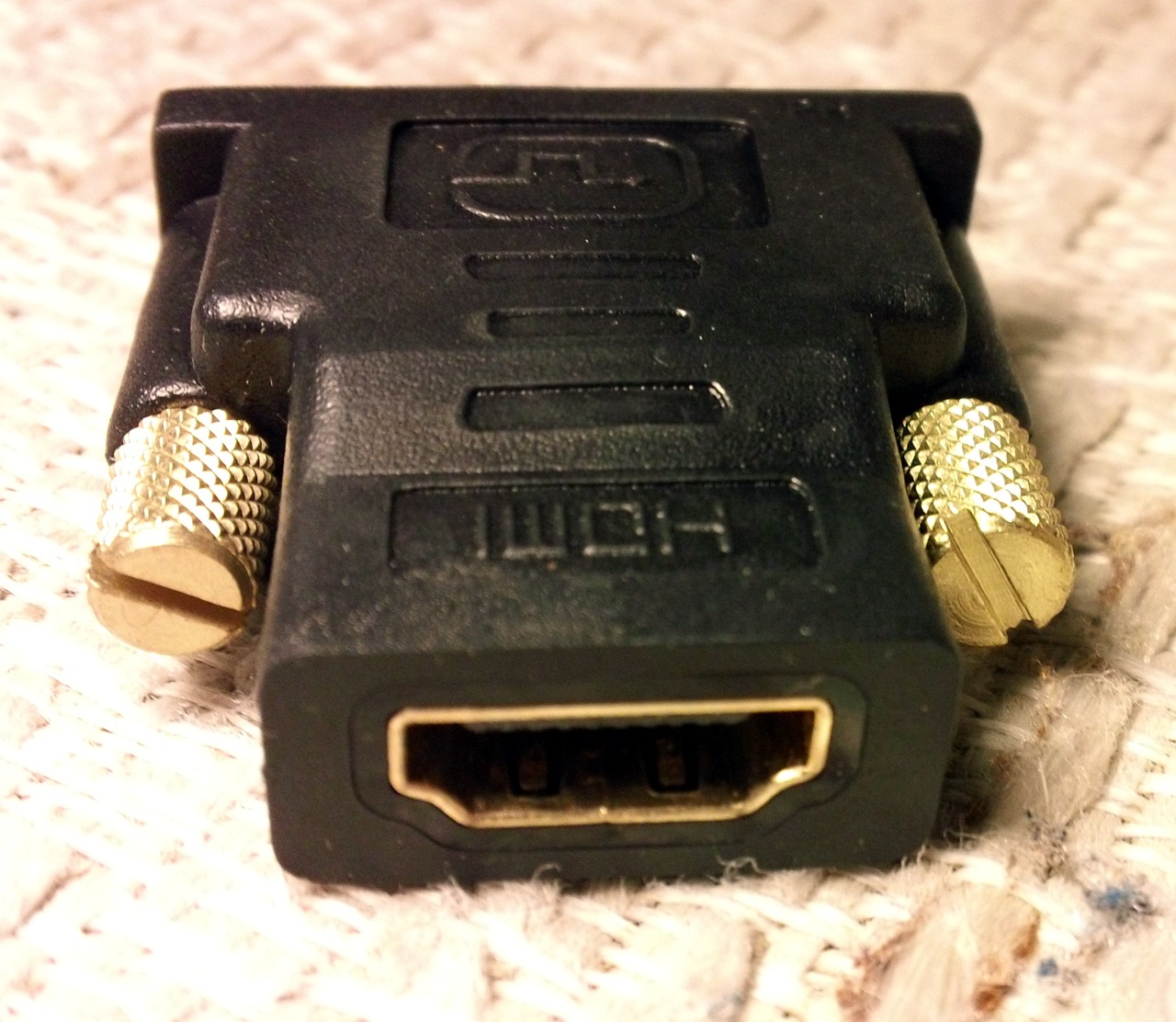

| Video adapter: | ||
| Connector 1: | HDMI female |
|
| Connector 2: | DVI-D male | |
| Use with the video cable to connect the Raspberry Pi to your DVI-compatible monitor or television. (Look for a female connector on the back of your display that looks like it fits this plug. If you find one, then it should work. Usually these connectors are white.) | ||

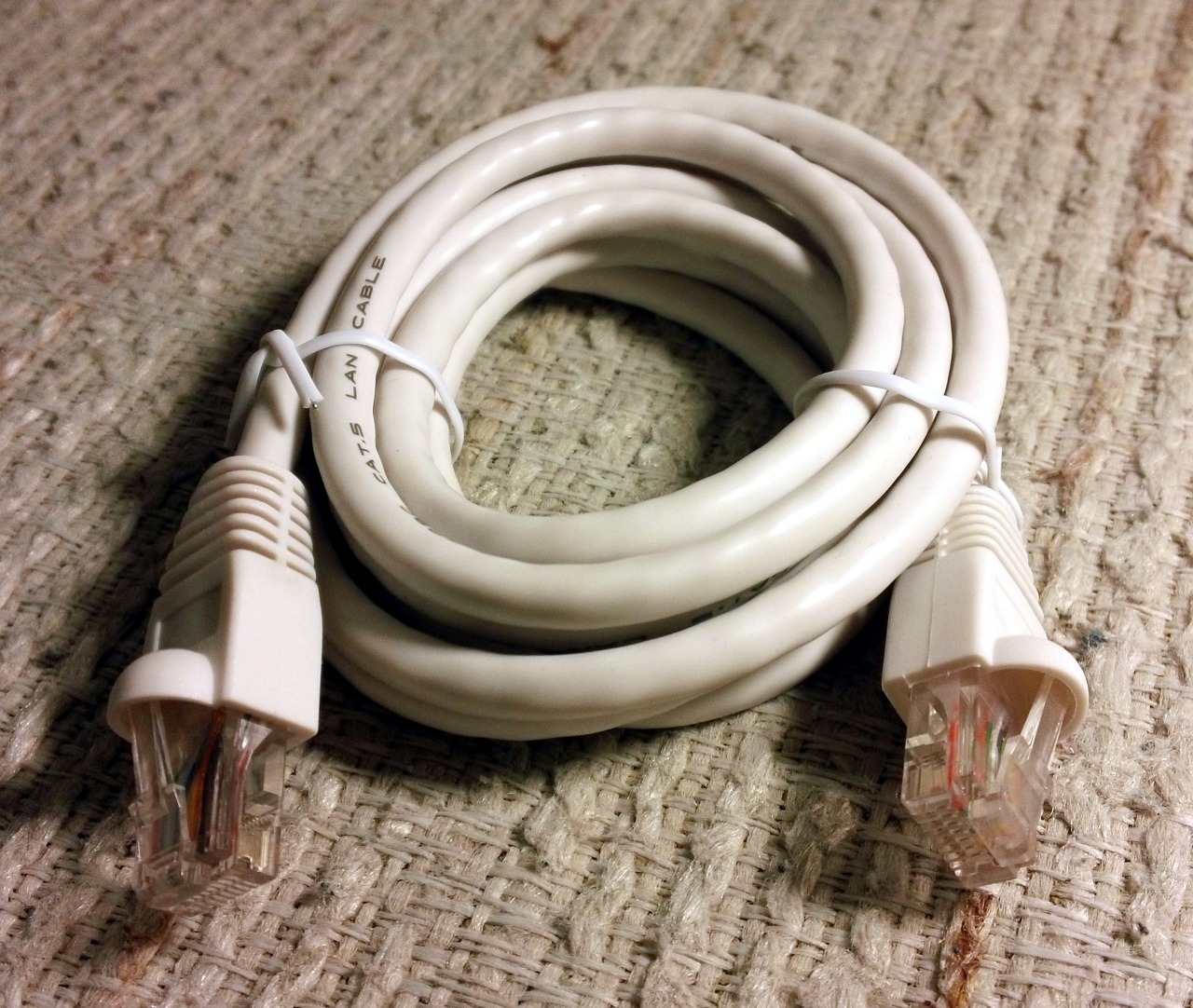

| Networking cable: | ||
| Length: | 6ft (1.8m) |
|
| Type: | Cat 5 | |
| Condition: | New | |
These components should all work with the Raspberry Pi, but are untested with it. If you request so, I'll be happy to test your items before delivery. If you choose this option, the seals on your Raspberry Pi box will be broken. Be sure to make this request before you pay. This will add about one business day of processing time. If any component is found to work suboptimally with the Pi, you will always have the option of canceling for a full refund, and in that case I'd also be willing to negotiate a small discount, depending on which items don't work.
TERMS: If you're not satisfied with your RasPi, please get in touch as soon as possible. I'll accept returns with prior authorization as long as you let me know there's a problem within 7 days of the the arrival of your package. Please contact me first before sending it back! If it's a defect of the Raspberry Pi or any individual component—but not a compatibility problem between them—I'll pay for your return shipping with the USPS option of my choice (USA customers only) and provide a full refund. If you're returning your Pi because you'd rather not keep it, you'll need to pay for your return shipping. If the Raspberry Pi box has been unsealed (whether by yourself or if you asked me to unbox and test your unit prior to delivery), it must be returned undamaged, and a 25% restocking fee will be deducted in order to account for the loss in its value as a used item.
International shipping is available to countries with which the US has no export restrictions or embargoes. Ask for a quote before you buy.
Miss your chance? Don't want to pay this much? If this item doesn't sell here in 3 days, I'm relisting it on the leading competitor to Bitmit in auction style for 7 days starting at 89.99 USD, and I'll accept Bitcoin payments there. Search for listings by user "piranha(jpl)".
